GE IS230TDBTH6A Discrete Input Output Terminal Board for Turbine Control

  • GE IS230TDBTH6A Discrete Input Output Terminal Board for Turbine Control
  • GE IS230TDBTH6A Discrete Input Output Terminal Board for Turbine Control
  • GE IS230TDBTH6A Discrete Input Output Terminal Board for Turbine Control
  • GE IS230TDBTH6A Discrete Input Output Terminal Board for Turbine Control
Place of Origin US
Marca GE
Certificazione COO
Model Number IS230TDBTH6A(IS200TDBTH6ABC)
Minimum Order Quantity 1pc
Prezzo $4800
Packaging Details New and original factory, individual box packing
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 999pcs

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Name GE IS230TDBTH6A(IS200TDBTH6ABC) Discrete Input Output Terminal Board Product ID IS230TDBTH6A(IS200TDBTH6ABC)
Series Turbine Specific Primary Trip Board Function Discrete Input Output Terminal Board
Product Net Depth/Length 330mm Product Net Height 200mm
Product Net Width 100mm Product Net Weight 2kg
Warranty 1year
Evidenziare

GE turbine control terminal board

,

discrete input output board

,

IS230TDBTH6A terminal board
Lasciate un messaggio
Descrizione di prodotto
GE IS230TDBTH6A(IS200TDBTH6ABC) Discrete Input Output Terminal Board

Product Overview

The GE IS230TDBTH6A(IS200TDBTH6ABC) is a powerful Discrete Input/Output Terminal Board in the Mark VI series, designed for TMR  systems with DIN-rail or flat mounting. It accepts 24 group-isolated contact inputs (nominal 125V DC) and features 12 Form-C relays, expandable via an optional WROBH1 board. Equipped with 49 metal oxide varistors (MOVs) and input filters, it suppresses surges and high-frequency noise, ensuring signal integrity in harsh industrial environments.


Compatible with Mark VI systems, it connects to three PDIO I/O packs via D-type connectors, communicating with controllers over Ethernet each pack linked to R, S, or dual controllers. Installation involves mounting on a sheet metal carrier with 12-24 AWG wiring to two 48-terminal blocks (TB1 for relays, TB2 for inputs). It lacks hardware jumpers, while the WROBH1 option uses 6 jumpers to control relay power.


Key Features
Input/Output Capacity: 24 group-isolated contact inputs (125V DC) and 12 Form-C relays, with optional expansion via WROBH1.


Robust Protection: 49 MOVs and input filters guard against surges and noise, critical for industrial reliability.


TMR Compatibility: Integrates with three PDIO packs for Ethernet-based communication with TMR controllers, ensuring redundancy.


Flexible Mounting: DIN-rail or cabinet-mountable via sheet metal carrier, with pluggable Euro-style terminal blocks (TB1/TB2) for organized wiring.


Simplified Configuration: No hardware jumpers; optional WROBH1 board uses 6 jumpers to enable/disable relay power, adapting to dry contact needs.


Diagnostics: Monitors relay contacts and fuse status with WROBH, providing feedback to PDIO packs for efficient troubleshooting.

Product Images

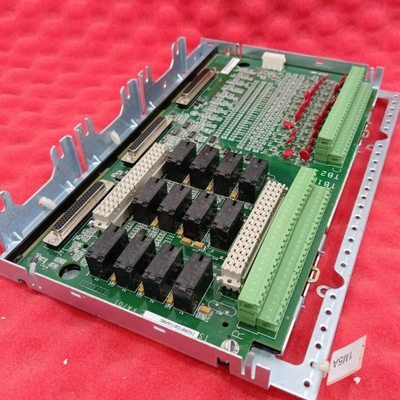

GE IS230TDBTH6A Discrete Input Output Terminal Board for Turbine Control 0

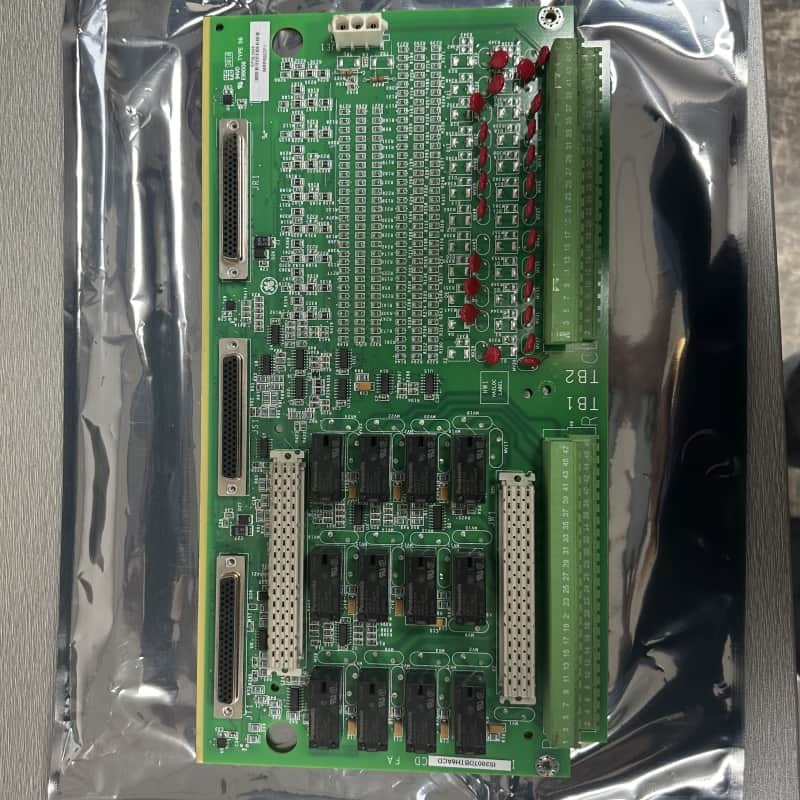

GE IS230TDBTH6A Discrete Input Output Terminal Board for Turbine Control 1
Applications

Ideal for industrial environments requiring reliable discrete signal management, particularly in turbine control systems and other critical applications where robust signal processing is essential.
