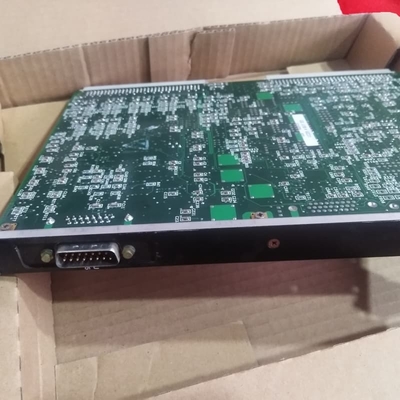

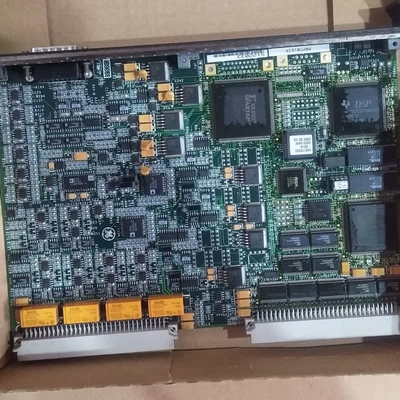

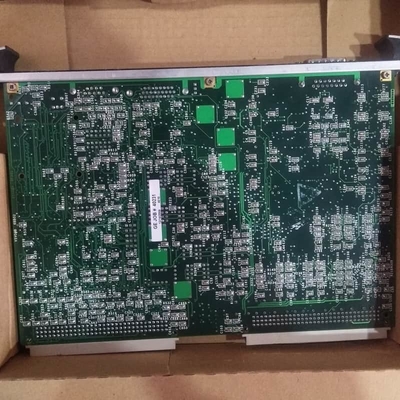

GE IS200VSVOH1BDC Servo Control Board for Turbine Systems
| Place of Origin | US |
|---|---|
| Marca | GE |
| Certificazione | COO |
| Model Number | IS200VSVOH1BDC |
| Minimum Order Quantity | 1pc |
| Prezzo | $3000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Name | GE IS200VSVOH1BDC Servo Control Board | Product ID | IS200VSVOH1BDC |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Servo Control Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Evidenziare | GE turbine servo control board,IS200VSVOH1BDC servo board,turbine systems control board |
||
Descrizione di prodotto
GE IS200VSVOH1BDC Servo Control Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200VSVOH1BDC Servo Control Board |
| Product ID | IS200VSVOH1BDC |
| Series | Turbine Specific Primary Trip Board |
| Function | Servo Control Board |
| Dimensions (L×W×H) | 330mm × 100mm × 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS200VSVOH1BDC is a Servo Control Board designed for the Mark VI Speedtronic system, providing precise control for electro-hydraulic servo valves in turbine applications.
Key Features
- Manages four electro-hydraulic servo valves for steam/fuel valve operation
- Compatible with gas, steam, and wind turbines
- Integrates with TSVO/DSVO terminal boards
- Utilizes LVDTs for accurate valve position feedback
- Processes pulse rate inputs for flow measurement
- Supports both simplex and TMR (Triple Modular Redundant) configurations
- Connects via VME rack J3/J4 and front-panel J5 interfaces
- Implements loop control algorithms for precise operation
- Features suicide relays for safe output disablement during faults
- Comprehensive diagnostics including LED indicators
- Monitors servo current, LVDT limits, and calibration status
- Built with FPGAs and robust components for industrial environments
Compatible Components
| DS200SHVMG1AFE | IS200ESELH2A |
| DS200SIOBH1ABA | IS200ESELH1AAA |
| DS200SLCCG3A | IS200ESELH2AAA |
| DS200SLCCG3AEG | IS200EXAMG1AAB |
| DS200SSBAG1A | IS200EXHSG3AEC |
| DS200TBCAG1AAB | IS200FHVBG1ABA |
| DS200TBCBG1AAA | IS200GGXDG1ABB |
| DS200TBQBG1ACB | IS200GGXIG1AFE |
