GE IS230SRLYH2A Simplex Relay Output Terminal Board Mark VI
| Luogo di origine | U.S.A. |
|---|---|
| Marca | GE |
| Certificazione | COO |
| Numero di modello | IS230SRLYH2A |
| Quantità di ordine minimo | 1 |
| Prezzo | $2600 |
| Tempi di consegna | 5-7 giorni |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 999 |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome | GE IS230SRYH2A Simplex Relay Output Terminal | ID prodotto | IS230SRLYH2A |
|---|---|---|---|
| Serie | Mark VI | Garanzia | 1 anno |
| Profondità/lunghezza della rete del prodotto | 330 mm | Altezza netta del prodotto | 200 mm |
| Larghezza della rete del prodotto | 100 mm | Peso netto del prodotto | 2 kg |
| Evidenziare | GE Mark VI relay output board,Simplex terminal board for turbine,GE IS230SRLYH2A relay module |
||
Descrizione di prodotto

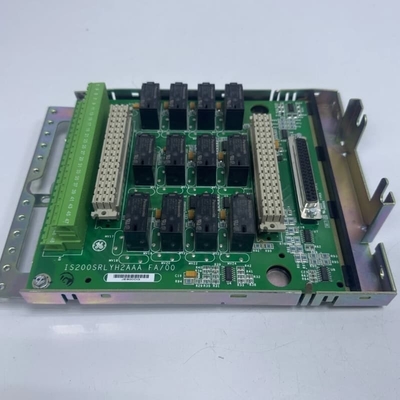

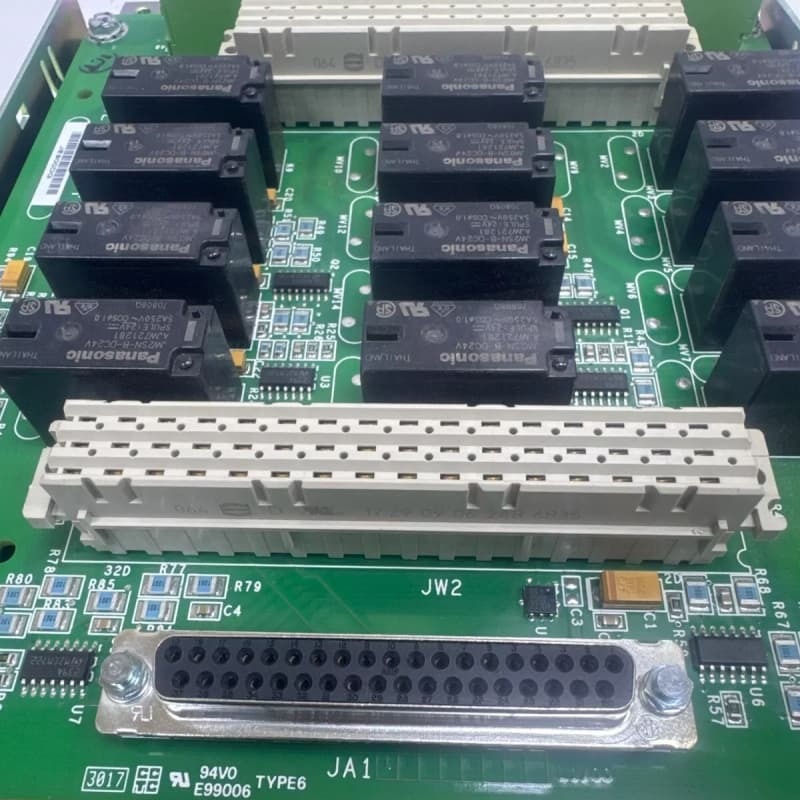

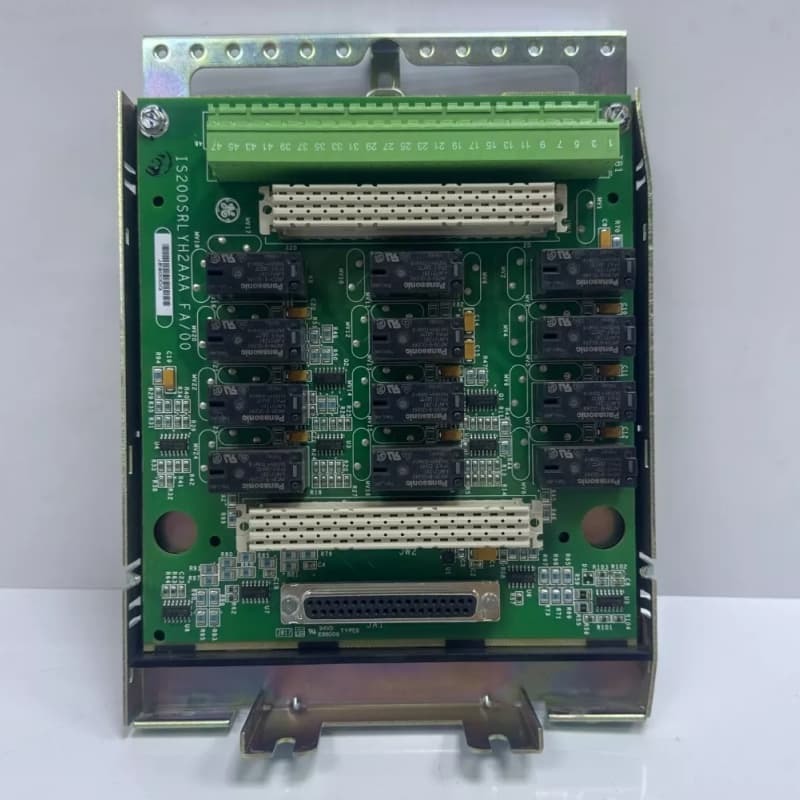

GE IS230SRLYH2A Simplex Relay Output Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS230SRLYH2A Simplex Relay Output Terminal Board |
| Product ID | IS230SRLYH2A |
| Series | Mark VI |
| Warranty | 1 Year |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
Product Overview
The GE IS230SRLYH2A is a Simplex Relay Output Terminal Board under the Mark VIe Series, designed for industrial control systems. This simplex "S-type" terminal board accepts PDOA/YDOA I/O packs and delivers 12 Form C relay output circuits via 48 customer terminals, enabling reliable control of field devices through relay switching.
Key Features
- Relay Output Capabilities: 12 Form C relays with fast response times (100,000 electrical operations and 10,000,000 mechanical operations rating)
- Diagnostic Functionality: Read-only ID chip for hardware compatibility checks and isolated contact pairs for real-time relay status monitoring
- Option Board Compatibility: Supports WROB, WROF, and WROG option boards for extended functionality
- Simplified Installation: Euro-style pluggable terminals and standardized S-type mounting with double stacking capability
- Industrial Durability: Operates in -30 to 65°C with free-air convection cooling, resistant to vibration and temperature fluctuations
Technical Details
Manufactured in the U.S., this surface-mount terminal board features a compact design that aligns with other Mark VIe S-type boards for seamless cabinet integration. It generates diagnostic alarms for fuse status monitoring when paired with option boards.
