GE IS2020RKPSG3A VME Rack Power Supply Module 400W Mark VI
| Luogo di origine | NOI |
|---|---|
| Marca | GE |
| Numero di modello | IS2020RKPSG3A |
| Quantità di ordine minimo | 1pc |
| Prezzo | $6000 |
| Imballaggi particolari | Fabbrica nuova e originale, imballaggio di singoli scatole |
| Tempi di consegna | 5-7 giorni |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 999pcs |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome | GE IS2020RKPSG3A Modulo di alimentazione del rack VME | ID prodotto | IS2020RKPSG3A |
|---|---|---|---|
| Serie | Mark VI | Funzione | Pannello terminale di ingresso |
| Profondità/lunghezza della rete del prodotto | 330 mm | Altezza netta del prodotto | 200 mm |
| Larghezza della rete del prodotto | 100 mm | Peso netto del prodotto | 2 kg |
| Garanzia | 1 anno | ||
| Evidenziare | GE VME rack power supply module,400W Mark VI power supply,GE turbine control power module |
||
Descrizione di prodotto

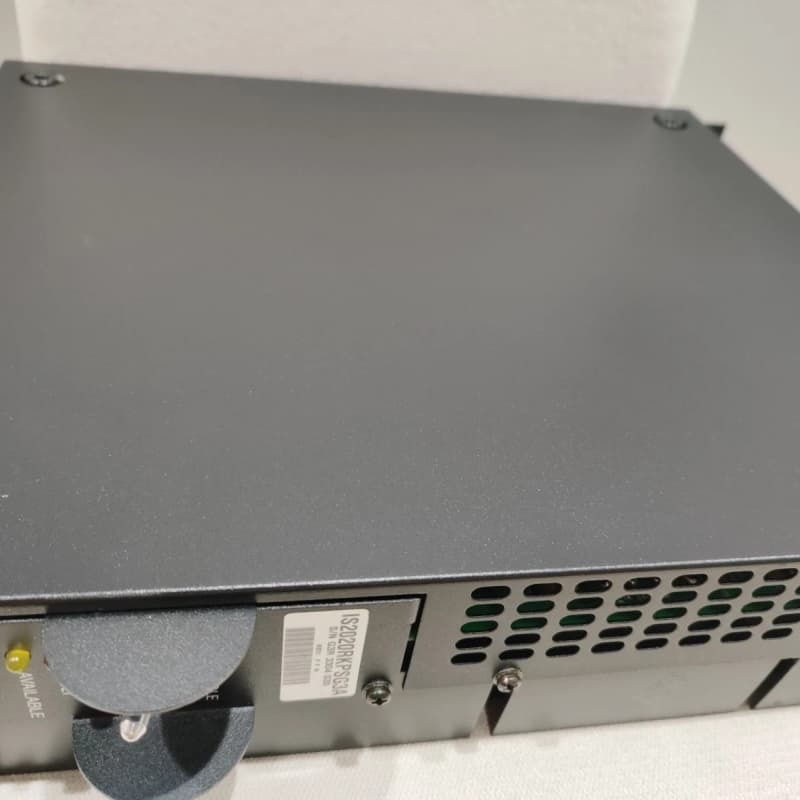

GE IS2020RKPSG3A VME Rack Power Supply Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS2020RKPSG3A VME Rack Power Supply Module |
| Product ID | IS2020RKPSG3A |
| Series | Mark VI |
| Function | Input Terminal Board |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS2020RKPSG3A is a VME Rack Power Supply Module, a key component of GE’s Mark VI Turbine Control System Series—one of the last Speedtronic-based systems and an upgrade over the Mark V. As a 400W standalone power supply, it mounts on the right-hand side of VME control/interface racks via a sheet metal bracket, delivering 125V DC input and outputs including a Status ID signal, 1 remote +28V PSA output, and 5 additional +28V PSA outputs. It also supports optional 335V DC output for external devices and can power peripherals via P28C/PS28.

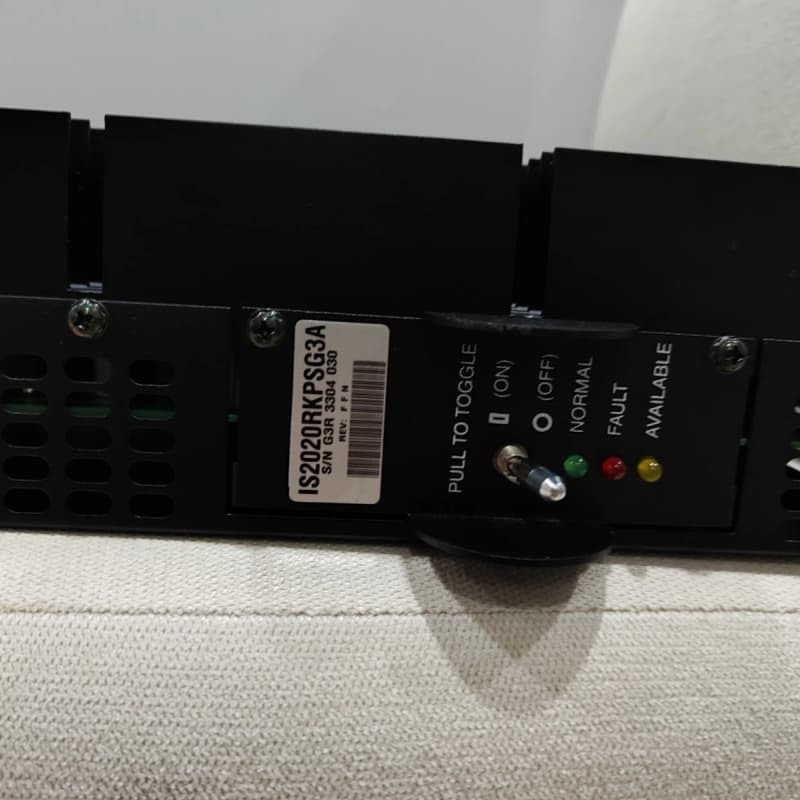

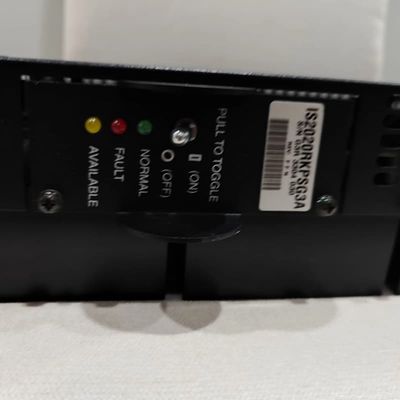

Designed with a front faceplate featuring a locking toggle switch and three status LEDs, it simplifies monitoring. Its side-mounted metal fins act as a heat sink, and top/bottom connectors facilitate wiring. It is a derivative of the IS2020RKPSG3 parent module and works with the IS2020LVPSG1, integrating into both simplex and TMR Mark VI setups via the central Control Module.
Key Features
Power Specifications: 400W output rating, 125V DC input, and multiple outputs to power VME backplanes, rack sections, and external peripherals.
Drop-In Compatibility: Part of 7 major VME power supply versions, designed for Mark VI systems and works with IS2020LVPSG1. Serves as a reliable replacement in existing Speedtronic turbine setups.
User-Friendly Design: Front-panel locking toggle switch resets faults and controls outputs; three LEDs for clear status tracking. Side metal fins act as a heat sink for thermal management, ensuring stability in harsh industrial environments.
Installation Flexibility: Mounts on VME rack right-side via sheet metal bracket. Top and bottom connectors simplify wiring; jumper switch enables “Isolated” mode for peripheral power. Detailed steps guide safe removal/installation.
Compatible Components
DS200DTBBG1ABB
DS200TCCAF1BDF
DS200SDCIG2AFB
IS200ISBBG1AAB
DS200SDCIG2AHB
IS200CABPG1BAA
DS200BDAAG1AAA
IS200DSFCG1AEB
DS200SIOBH1ABA
IS200DRLYH1BBB
