GE 531X111PSHARG3 Motor Control Board 100mm x 200mm x 330mm
| Luogo di origine | U.S.A. |
|---|---|
| Marca | GE |
| Certificazione | COO |
| Numero di modello | 531x111psharg3 |
| Quantità di ordine minimo | 1 |
| Prezzo | $1500 |
| Tempi di consegna | 5-7 giorni |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 999 |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome | GE 531x111psharg3 Controllo e alimentazione del campo di alimentazione del motore | ID prodotto | 531x111psharg3 |
|---|---|---|---|
| Serie | 531x | Larghezza della rete del prodotto | 100 mm |
| Altezza netta del prodotto | 200 mm | Profondità/lunghezza della rete del prodotto | 330 mm |
| Garanzia | 1 anno | Peso netto del prodotto | 2 kg |
| Evidenziare | GE turbine motor control board,531X111PSHARG3 control board with warranty,100mm x 200mm x 330mm motor board |
||
Descrizione di prodotto
GE 531X111PSHARG3 Motor Field Control & Power Supply Board
Product Overview
The GE 531X111PSHARG3 is a Motor Field Control and Power Supply Board designed for GE’s EX2000 excitation system and part of the 531X replacement board series. As a G3 revision, it differs from prior versions by having external MOVs for AC lines and is engineered to power industrial drives and motor field electronics. Measuring 4 cm × 24 cm × 29.2 cm and weighing 0.58 kg, it generates three regulated DC power supplies critical for drive operation and integrates a pulse transformer to supply motor field circuitry.
It supports external exciters and includes three onboard relays for device control, plus three potentiometers for calibrating current feedbacks/circuits and five programmable jumpers for adjusting feedback/current signals. Installation requires trained personnel to follow GE’s guidelines to avoid damage; GE originally provided technical support, and it is compatible with GE-developed drives and exciters.
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE 531X111PSHARG3 Motor Field Control & Power Supply Board |
| Product ID | 531X111PSHARG3 |
| Series | 531X |
| Warranty | 1 Year |
| Dimensions (W × H × D) | 100mm × 200mm × 330mm |
| Weight | 2kg |
Key Features
Dual Functionality: Serves as both a power supply (5/15/24 VDC outputs) and motor field controller, integrating a pulse transformer to power motor field circuitry—eliminating the need for separate components.
G3 Revision Trait: AC line MOVs are external, a G3-specific design, optimizing onboard space and potentially simplifying maintenance of surge protection components.
Configurable Controls: Three potentiometers enable precise calibration of current feedbacks/circuits, while five programmable jumpers adjust feedback/current signals, adapting to diverse drive requirements.
Reliable Control Relays: Onboard K1 (RUN), K2 (MAX), and K3 (FAULT) relays provide clear, dedicated control for drive operational states, enhancing system safety and monitoring.

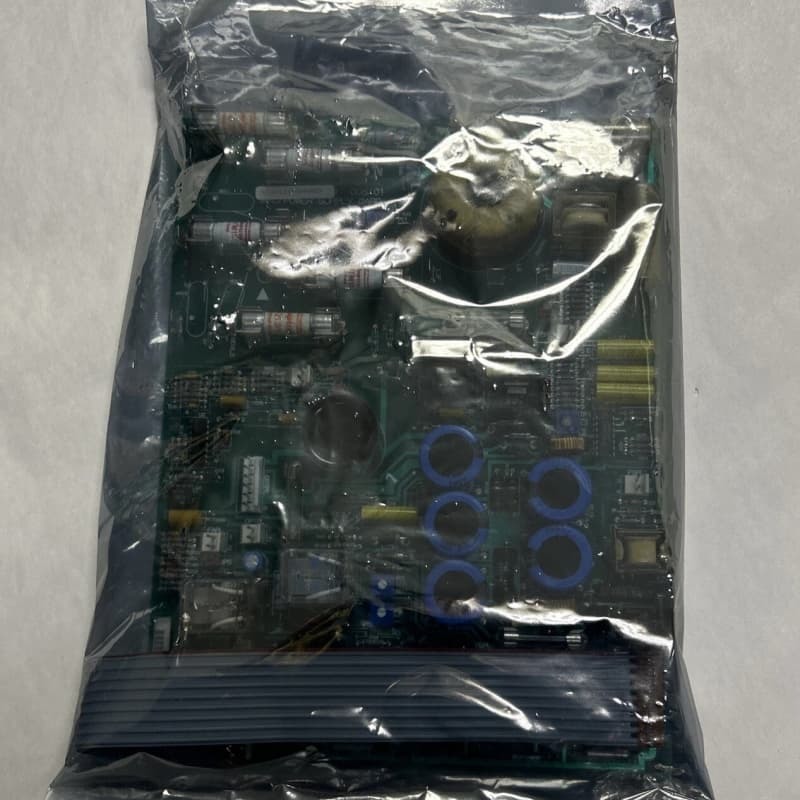

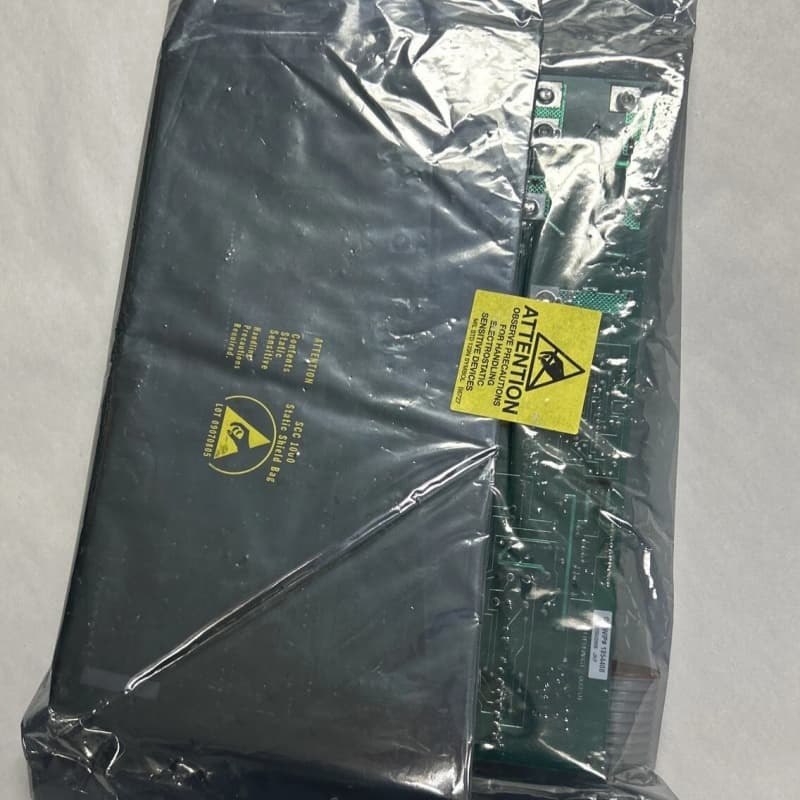

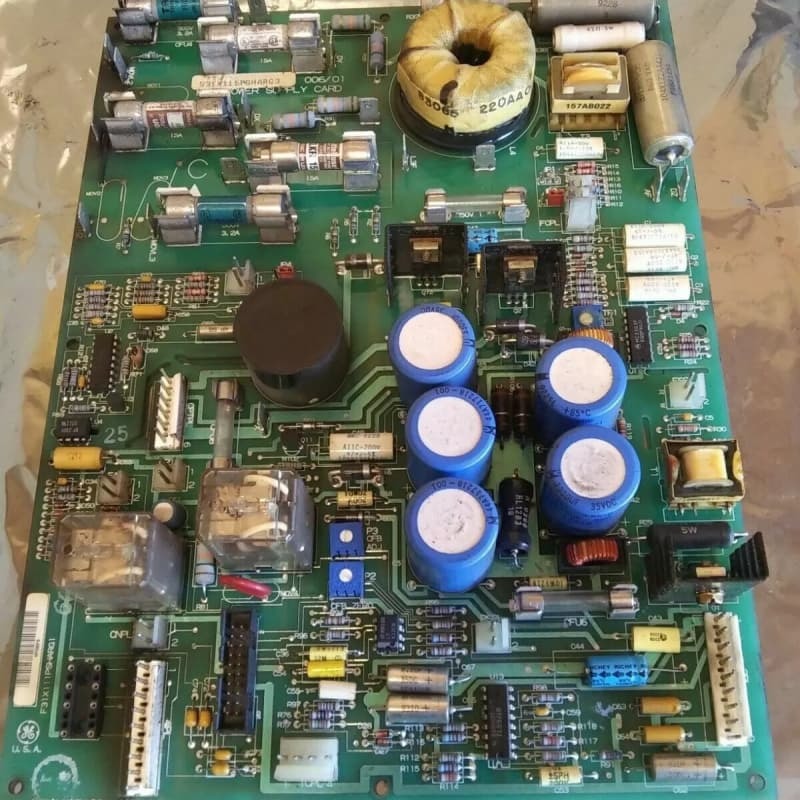

Product Images
