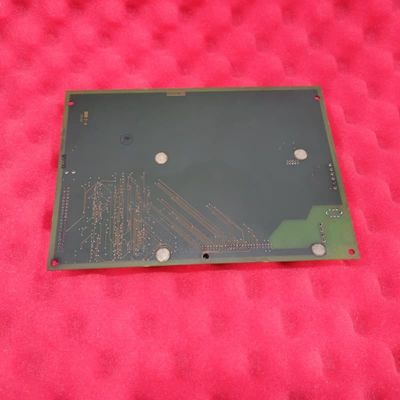

GE DS200ADG1H1AAA Auxiliary Interface Board 100mm x 200mm
| Luogo di origine | U.S.A. |
|---|---|
| Marca | GE |
| Certificazione | COO |
| Numero di modello | DS200ADG1H1AAA |
| Quantità di ordine minimo | 1 |
| Prezzo | $500 |
| Tempi di consegna | 5-7 giorni |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 999 |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome | GE DS200ADG1H1AAA AUSILIARY Interface Board | ID prodotto | DS200ADG1H1AAA |
|---|---|---|---|
| Serie | Mark v | Larghezza della rete del prodotto | 100 mm |
| Altezza netta del prodotto | 200 mm | Profondità/lunghezza della rete del prodotto | 330 mm |
| Garanzia | 1 anno | Peso netto del prodotto | 2 kg |
| Evidenziare | GE turbine control interface board,auxiliary interface board 100mm x 200mm,GE DS200ADG1H1AAA control board |
||
Descrizione di prodotto
GE DS200ADG1H1AAA Auxiliary Interface Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE DS200ADG1H1AAA Auxiliary Interface Board |
| Product ID | DS200ADG1H1AAA |
| Series | Mark V |
| Warranty | 1 Year |
| Dimensions (W × H × D) | 100mm × 200mm × 330mm |
| Weight | 2kg |
Product Overview
The GE DS200ADG1H1AAA is a printed circuit board (PCB) designed for GE's Mark V Turbine Control System, specifically used in managing steam and gas turbine automated drive assemblies. As an Auxiliary Interface Board, it facilitates integration between the Mark V system and auxiliary components, supporting the control logic of turbine operations.
Physically, it measures 8 inches wide and 6 inches long, featuring a 40-pin connector, a 6-pin connector, 60 jumpers, and multiple test points. It installs in the drive's board cabinet via four screws aligning with the board rack. Testing requires qualified servicers with calibrated equipment, proper probe usage, and anti-static measures to prevent damage from static discharge—critical given its sensitivity to electrostatic interference.
Key Features
- Mark V Integration: Tailored for the Mark V Turbine Control System, enabling seamless communication between the main control unit and auxiliary turbine components, ensuring coordinated operation.
- Connectivity Options: Equipped with 40-pin and 6-pin connectors, plus 60 jumpers, supporting diverse signal connections and configuration flexibility for auxiliary systems.
- Test Accessibility: Multiple test points allow circuit diagnostics, though restricted to qualified personnel with proper tools to maintain accuracy and safety.
- Compact Installation: Dimensions (8"×6") and screw-mount design fit precisely in Mark V cabinet racks, ensuring secure integration into turbine control setups.

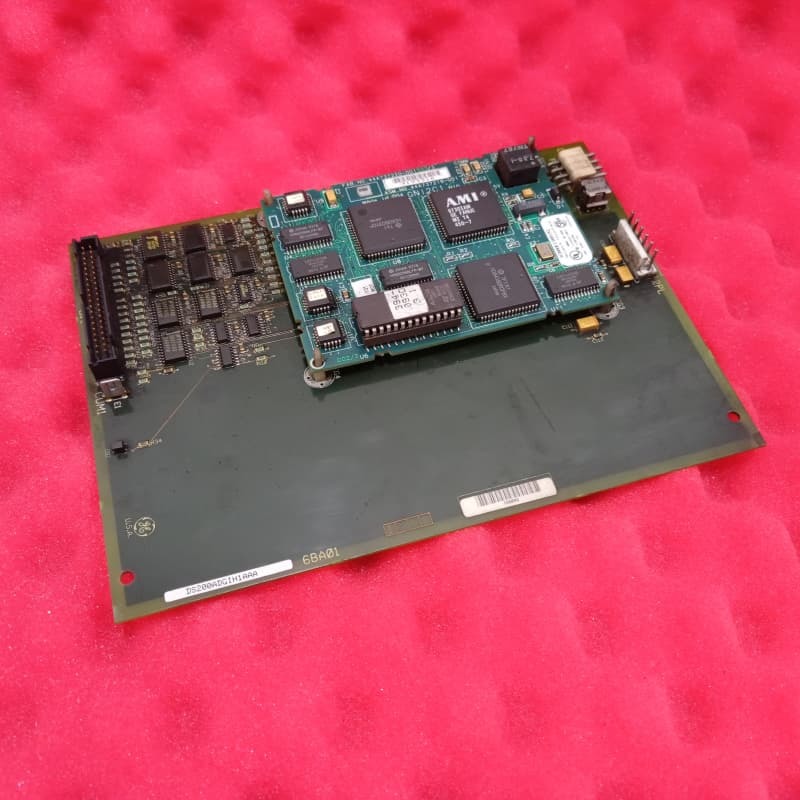

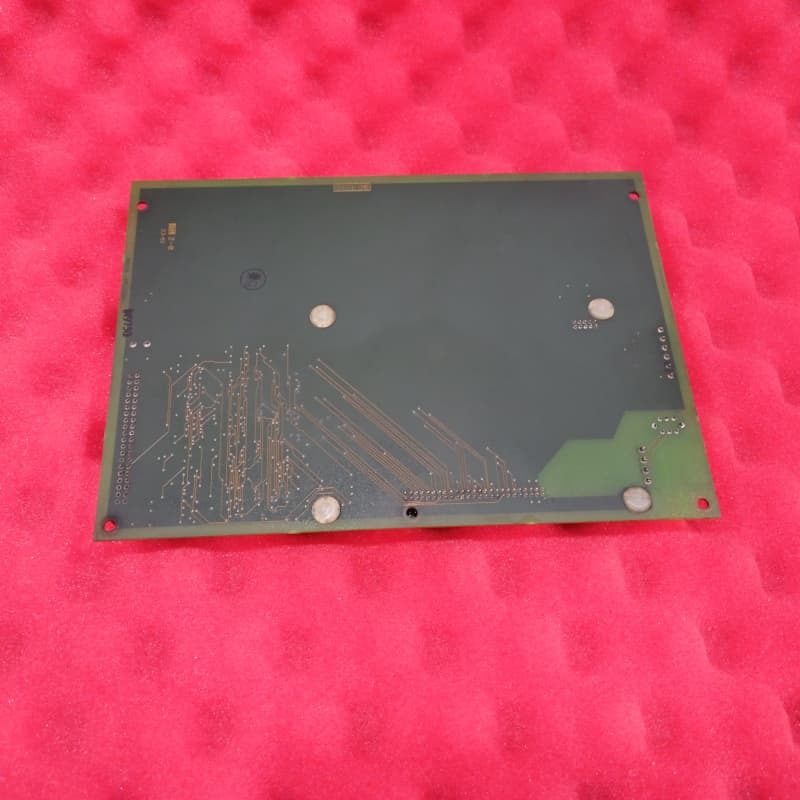

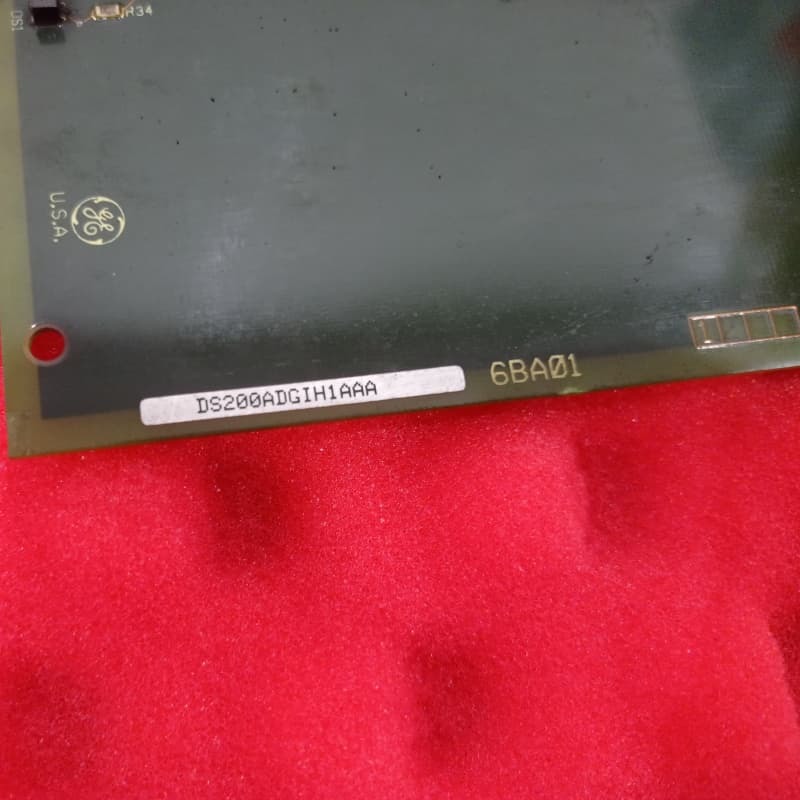

Product Images
