GE DS200PCCAG1ACB DC Power Connect Board 330mm x 200mm
| Luogo di origine | NOI |
|---|---|
| Marca | GE |
| Numero di modello | DS200PCCAG1ACB |
| Quantità di ordine minimo | 1pc |
| Prezzo | $3000 |
| Imballaggi particolari | Fabbrica nuova e originale, imballaggio di singoli scatole |
| Tempi di consegna | 5-7 giorni |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 999pcs |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome | GE DS200PCCAG1ACB DC Power Connect Scheda | ID prodotto | DS200PCCAG1ACB |
|---|---|---|---|
| Serie | Mark v | Funzione | Pacchetto di output discreto |
| Profondità/lunghezza della rete del prodotto | 330 mm | Altezza netta del prodotto | 200 mm |
| Larghezza della rete del prodotto | 100 mm | Peso netto del prodotto | 2 kg |
| Garanzia | 1 anno | ||
| Evidenziare | GE turbine control power connect board,DS200PCCAG1ACB DC power board,330mm x 200mm GE control board |
||
Descrizione di prodotto

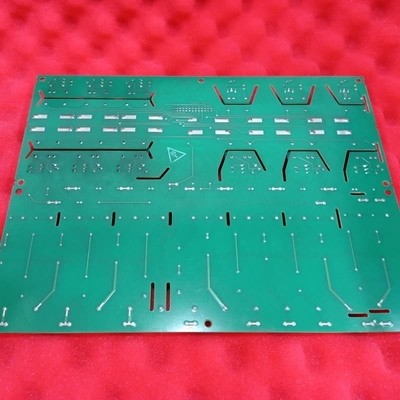

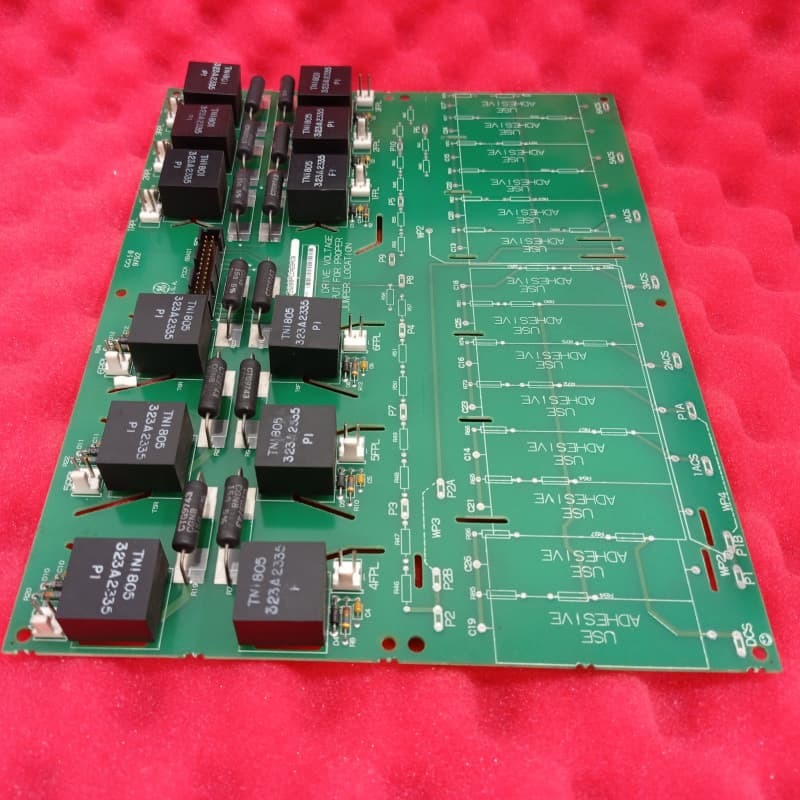

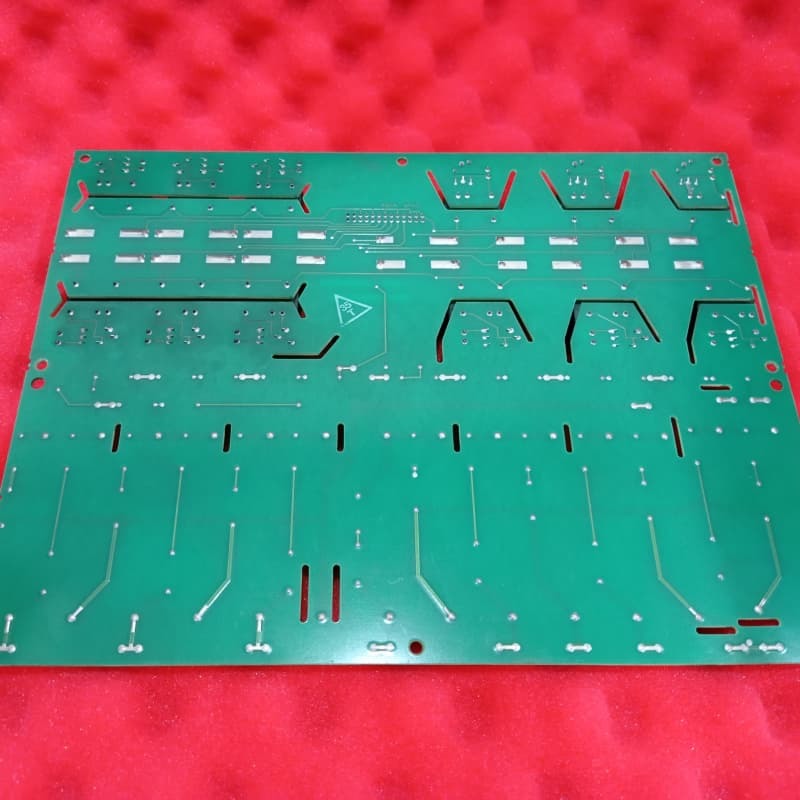

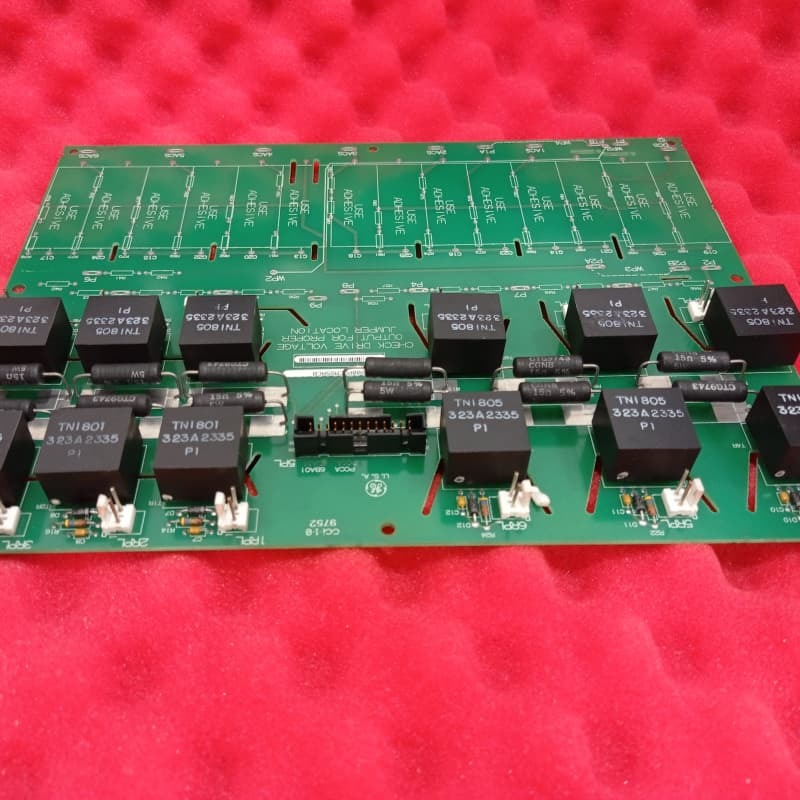

GE DS200PCCAG1ACB DC Power Connect Board
Product Details:
The GE DS200PCCAG1ACB is a DC Power Connect Card (PCCA) belonging to GE’s Industrial Control Systems DC2000 series and Mark V series. It acts as a critical interface between DC200 drives and SCR power bridges, enabling stable power transfer and control. Notably, it is non-repairable and requires full replacement if malfunctioning. Classified as Group 1—it features AC/DC snubbers, compatibility with C/G-style frames and SDCI power supply boards, <600 V rms AC voltage tolerance, line fuses/reactors, and support for separate/common bus transformers.
Physically, it includes four adjustable labeled jumpers for customization, plus snubber circuits and pulse transformers for voltage protection. Installation requires drive power-off; downtime is recommended for maintenance per GE guidelines.
Key Features:
Dual-Series Compatibility: Works with DC2000 series drives and Mark V systems, serving as a dedicated interface between DC200 drives and SCR power bridges.
Non-Repairable Design: Lacks serviceable parts; full replacement is required for malfunctions, simplifying maintenance decisions.
Customizable Jumpers: Four labeled jumpers enable configuration for different terminal connections, adapting to system requirements.
Voltage Protection: Integrates snubber circuits and pulse transformers to safeguard against voltage fluctuations, enhancing SCR bridge and drive reliability.
Maintenance-Aligned Installation: Power-off installation allows concurrent drive maintenance, optimizing downtime and extending drive service life.
| DS200DTBBG1ABB | DS200TCCAF1BDF |
| DS200SDCIG2AFB | IS200ISBBG1AAB |
| DS200SDCIG2AHB | IS200CABPG1BAA |
| DS200BDAAG1AAA | IS200DSFCG1AEB |
| DS200SIOBH1ABA | IS200DRLYH1BBB |
