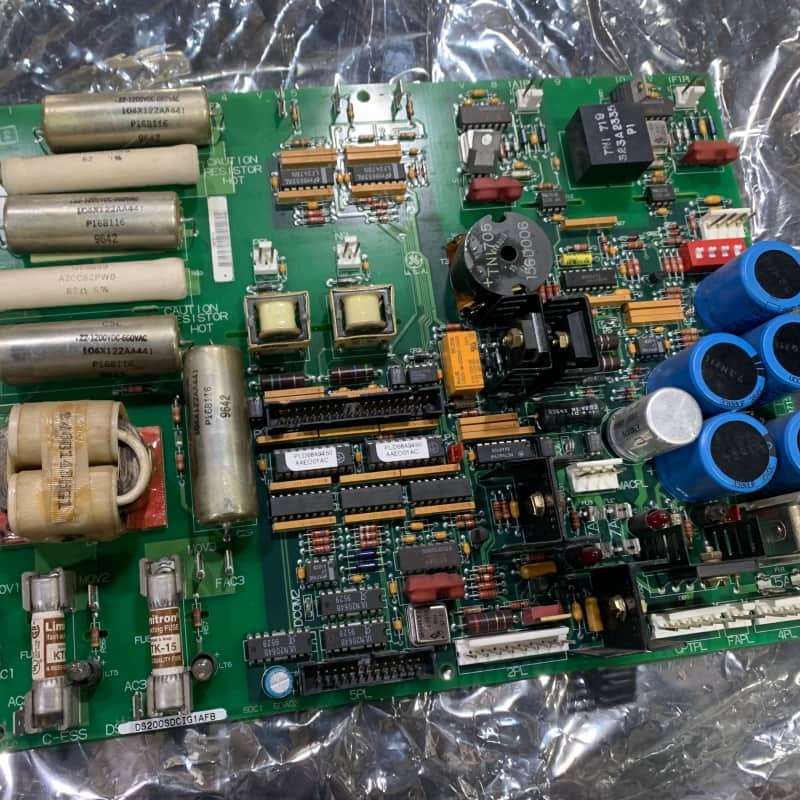

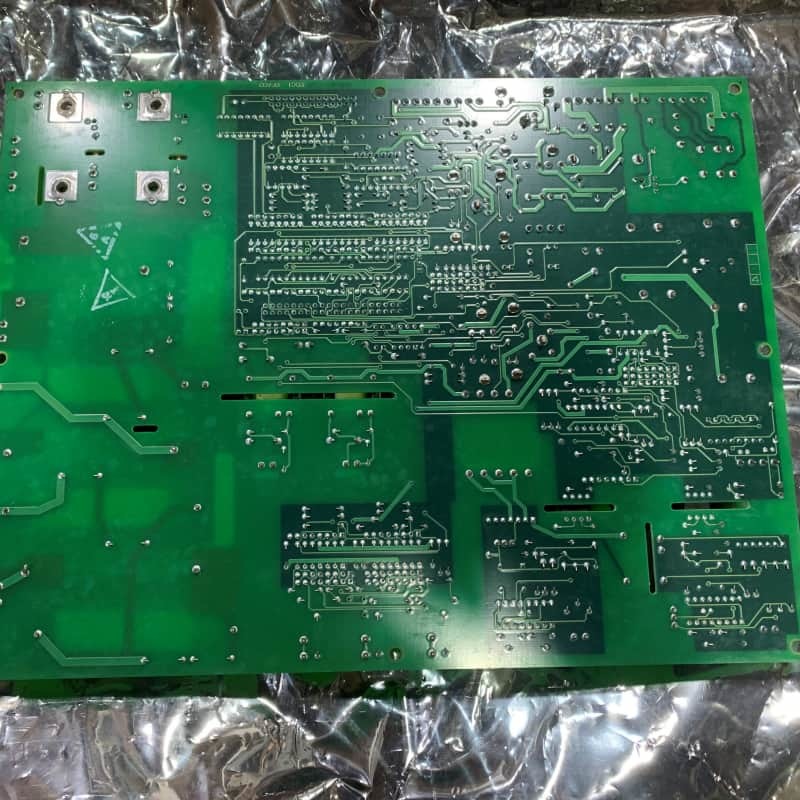

GE Mark V DS200SDCIG1ABA DC Power Supply Board 200mm x 330mm
| Luogo di origine | U.S.A. |
|---|---|
| Marca | GE |
| Certificazione | COO |
| Numero di modello | Ds200sdcig1aba |
| Quantità di ordine minimo | 1 |
| Prezzo | $999 |
| Tempi di consegna | 5-7 giorni |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 999 |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome | GE Mark V DS200SDCIG1ABA DC Alimentatore e strumentazione | ID prodotto | Ds200sdcig1aba |
|---|---|---|---|
| Serie | Mark v | Altezza netta del prodotto | 200 mm |
| Profondità/lunghezza della rete del prodotto | 330 mm | Larghezza della rete del prodotto | 100 mm |
| Peso netto del prodotto | 2 kg | Garanzia | 1 anno |
| Evidenziare | GE Mark V DC power supply board,DS200SDCIG1ABA power supply module,200mm x 330mm turbine control board |
||
Descrizione di prodotto
GE Mark V DS200SDCIG1ABA DC POWER SUPPLY AND INSTRUMENTATION BOARD
Product Description:
The GE DS200SDCIG1ABA is a Power Supply Board for GE’s Mark V Turbine Control System and DC2000 drive control systems. It acts as an interface to DC2000 drives, enabling non-reversing/non-plugging (NRX) motor control for unidirectional motor operation. As a Group 1 Mark V component, it has three revisions: two functional, one artwork and domestic manufacture.

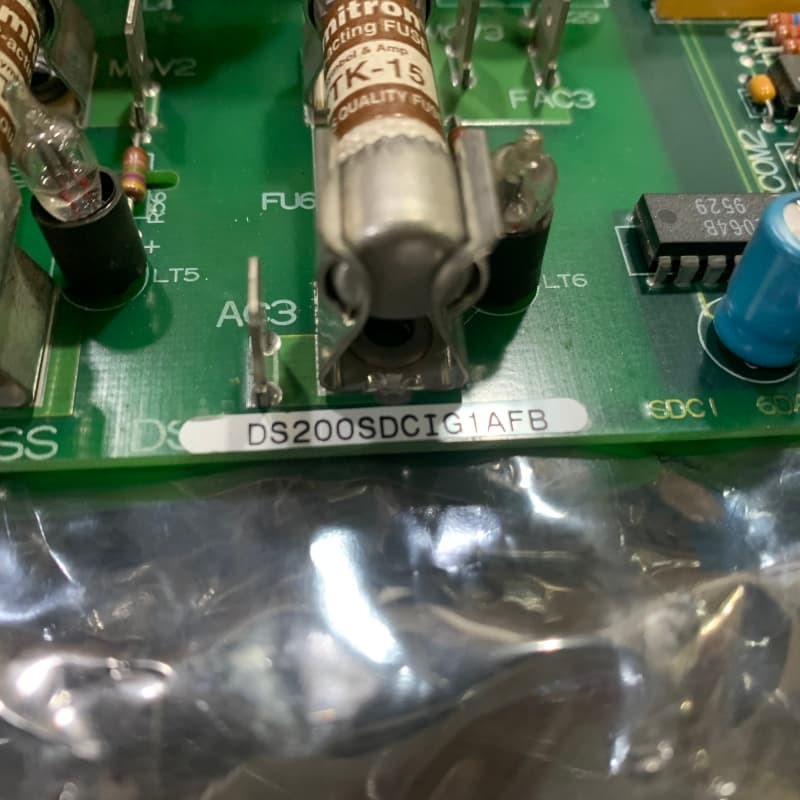

Key hardware includes power circuits ----armature SCR gating, motor field control, fuses---FU1-FU3, FU5-FU6 for 115V AC/signal power, two jumpers, and SW1. It offers two versions: SDCIG1 that internal 10A NRX field control with 15A fused outputs, line reactor, snubbers. And SDCIG2 external field supply management. Power supplies include ±5V/±15V/±24V DC and 115V AC; it uses thyristor-diode bridges for field current regulation.
Features:
NRX Motor Control: Enables single-direction motor operation for DC2000 drives, boosting reliability in consistent, unidirectional applications.
Dual-Version Flexibility: SDCIG1 (integrated 10A field control) suits self-contained setups; SDCIG2 (external field management) offers customization for external systems.
Comprehensive Protection: Fuses with neon blow indicators, AC/DC snubbers, and line reactors guard against voltage spikes, noise, and component damage.
Precise Power Regulation: Thyristor-diode bridges and dedicated power circuits (±5V/±15V/±24V DC, 115V AC) ensure stable field current and system power.
Technical Parameters:
| Product Name: | GE Mark V DS200SDCIG1ABA DC POWER SUPPLY AND INSTRUMENTATION BOARD |
| Product ID: | DS200SDCIG1ABA |
| Series: | Mark V |
| Product Net Weight: | 2kg |
| Product Net Height: | 200mm |
| Product Net Width: | 100mm |
| Product Net Depth/Length: | 330mm |
| Warranty: | 1 Year |
