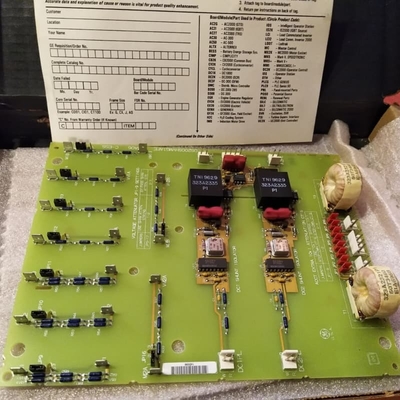

GE DS200SHVMG1AFE SCR High Voltage Interface Board 330mm x 200mm
| Luogo di origine | NOI |
|---|---|
| Marca | GE |
| Numero di modello | DS200SHVMG1AFE |
| Quantità di ordine minimo | 1pc |
| Prezzo | $1500 |
| Imballaggi particolari | Fabbrica nuova e originale, imballaggio di singoli scatole |
| Tempi di consegna | 5-7 giorni |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 999pcs |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome | GE DS200SHVMG1AFE SCRO SCHETTURA M-FRAME ad alta tensione | ID prodotto | DS200SHVMG1AFE |
|---|---|---|---|
| Serie | Mark v | Funzione | Pacchetto di output discreto |
| Profondità/lunghezza della rete del prodotto | 330 mm | Altezza netta del prodotto | 200 mm |
| Larghezza della rete del prodotto | 100 mm | Peso netto del prodotto | 2 kg |
| Garanzia | 1 anno | ||
| Evidenziare | GE SCR high voltage interface board,GE turbine control interface board,330mm x 200mm SCR board |
||
Descrizione di prodotto
GE DS200SHVMG1AFE SCR High Voltage M-Frame Interface Board
Product Details:
The GE DS200SHVMG1AFE is a SCR High Voltage M-Frame Interface Board designed for GE’s EX2000 Series and Mark V Turbine Control System—one of the final GE Mark lines to use patented Speedtronic technology. A revised variant of the original DS200SHVMG1 parent board, it acts as a critical interface between an M-frame drive’s SCR bridge, DCFB/SDCI Power Supply Boards, and PCCA Power Connect Cards, supporting wind, steam, and gas turbine drive control systems.
Its core functions include converting shunt signals into differential-frequency outputs via DC positive/negative floating shunt isolator voltage-controlled oscillator circuits, then transmitting these signals to power supply/connect boards. It also provides configurable attenuation: jumper-selectable 10:1 current transformers for AC line currents to handle currents exceeding 144 mA; line voltage attenuators and DC bridge voltage resistor strings.
Hardware includes 17 configurable jumpers, voltage-limiting components, and a functional priority-based PCB coating. Installation requires waiting for capacitors to discharge to avoid voltage hazards; it is static-sensitive, shipped in protective packaging by suppliers like AX. It belongs exclusively to Mark V Group 1 and is not backward compatible with earlier base models due to revisions. Suppliers like WOC offer replacement, repair, and warranty-backed unused/rebuilt units, with 24/7 expert support.
Key Features:
Dual-System Compatibility: Works with EX2000 Excitation Control Systems and Mark V Turbine Control Systems, leveraging Speedtronic technology for reliable turbine drive operation.
Signal Conversion & Attenuation: Converts shunt signals to differential frequencies and offers configurable CT/voltage attenuation, adapting to diverse AC line voltage and current needs.
Jumper-Configurable Flexibility: 17 jumpers enable precise customization to system requirements, guided by OEM manuals.
Safety & Durability: Voltage-limiting components and PCB coating protect hardware; static-sensitive design and capacitor discharge requirements ensure safe handling/installation.
Legacy Support: Backed by suppliers offering replacement, repair, and 24/7 support, extending the lifespan of Mark V systems.
| DS200DTBBG1ABB | DS200TCCAF1BDF |
| DS200SDCIG2AFB | IS200ISBBG1AAB |
| DS200SDCIG2AHB | IS200CABPG1BAA |
| DS200BDAAG1AAA | IS200DSFCG1AEB |
| DS200SIOBH1ABA | IS200DRLYH1BBB |
