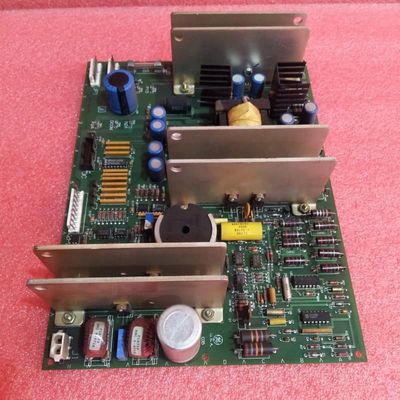

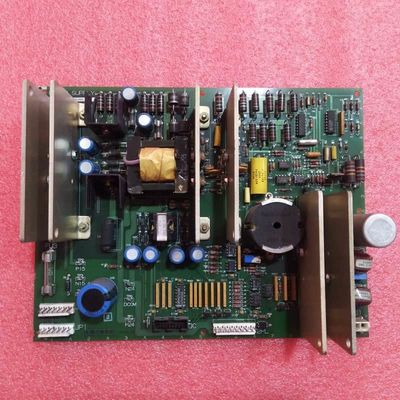

GE DS200TCPSG1A DC Input Power Supply for Mark V Turbine Control with 125 VDC Power Conversion and Dedicated Connector Ecosystem

GE DS200TCPSG1A DS200TCPSG1AME DC INPUT POWER SUPPLY

Product Details:

The GE DS200TCPSG1AME is a dedicated power supply card for the Mark V Speedtronic system—GE’s industrial control platform for gas and steam turbines, renowned for robust protection and control. As an upgraded variant of the parent DS200TCPSG1 board (incorporating three key revisions absent in the original), it operates within the Mark V’s  core. Its primary role is converting 125 VDC power from the  core into voltages critical for Mark V components: RTD power, servo valve current outputs, and microprocessor power. Unlike configurable counterparts, it requires no hardware/software setup and is authenticated by the GE logo, factory drilling, and unique identification codes.​

Key Features​:
System-Centric Power Conversion: Tailored to the Mark V’s  core, it precisely transforms -sourced 125 VDC into multi-purpose voltages, enabling reliable operation of downstream components (e.g., TCQC, TCCA, TCDA boards).​

Dedicated Connector Ecosystem: Equipped with connectors (J1, 2PL, JC, JP1, JP2) for dual functions—J1 inputs 125 VDC, while others distribute power to essential system boards, ensuring streamlined power routing.​

Robust Hardware Protection & Thermal Management: Integrates fuses (component protection), heat sinks (heat dissipation), metal oxide varistors (surge protection), and resistor networks, enhancing durability in industrial environments.​

Informative Product Numbering: Its part number encodes critical details (assembly style, manufacturing location, PCB coating type, revisions A/M/E), compensating for limited original manuals and aiding identification.​

Simplified Operation: Lacks hardware/software configurations, reducing setup complexity and minimizing operational errors, ideal for industrial turbine control workflows.
