GE Mark V Series Drive Control Card with 200mm Height 100mm Width and 1 Year Warranty for Turbine Control Systems
| Luogo di origine | U.S.A. |
|---|---|
| Marca | GE |
| Certificazione | COO |
| Numero di modello | Ds215gascg4azz01a (ds200sdccg4aec+ds200slccg3acc) |
| Quantità di ordine minimo | 1 |
| Prezzo | $1500 |
| Tempi di consegna | 5-7 giorni |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 999 |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome | GE DS215GASC4AZZ01A (DS200SDCCG4AEC+DS200SLCCG3ACC) scheda di controllo dell'unità | ID prodotto | Ds215gascg4azz01a (ds200sdccg4aec+ds200slccg3acc) |
|---|---|---|---|
| Serie | Mark v | Peso netto del prodotto | 2 kg |
| Profondità/lunghezza della rete del prodotto | 330 mm | Altezza netta del prodotto | 200 mm |
| Larghezza della rete del prodotto | 100 mm | Garanzia | 1 anno |
| Evidenziare | 200mm Height Drive Control Card,100mm Width Drive Control Board,1 Year Warranty Turbine Control Card |
||
Descrizione di prodotto

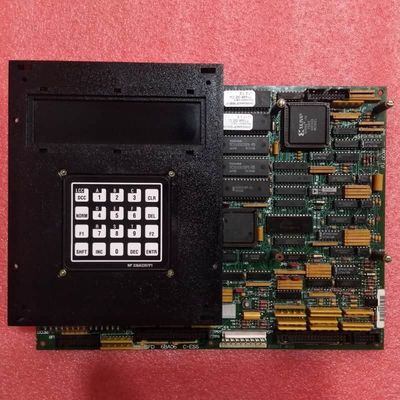

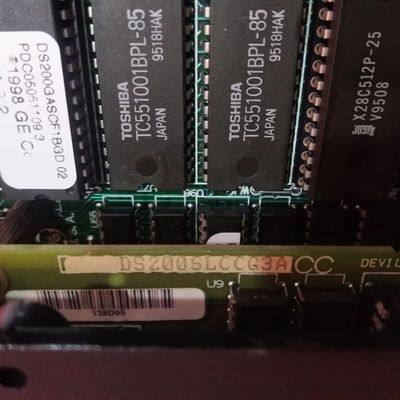

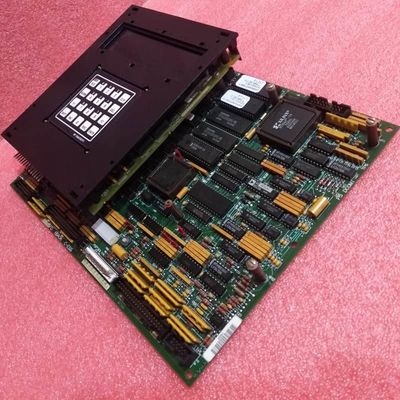

GE DS215GASCG4AZZ01A(DS200SDCCG4AEC+DS200SLCCG3ACC) Drive Control Card
Product Overview
The GE DS215GASCG4AZZ01A(DS200SDCCG4AEC+DS200SLCCG3ACC) is a core Drive Control Board designed for industrial drive systems, likely integrated with GE's Mark V Turbine Control System. This advanced control card features three specialized microprocessors:
- Drive Control Processor (DCP): Manages system-level tasks including chip select decoding, direct memory access (DMA), and interrupt control
- Motor Control Processor (MCP): Handles motor-specific functions
- Co-Motor Processor (CMP): Processes math-intensive tasks beyond the MCP's capability
Key Features
- Expandable Functionality: Supports optional LAN and signal processor cards for diverse communication and signal processing needs
- Intuitive Diagnostics: 10-LED front panel with BCD/binary fault coding enables quick issue identification
- Configurable Hardware: Factory-set JP/WJ jumpers ensure compatibility with flexibility for user adjustments
- Robust Design: Shared RAM allows simultaneous multi-processor access for efficient operation
- Secure Installation: Includes standoffs, nylon washer compatibility, and EPROM transfer guidelines
Installation & Maintenance
For safe installation/replacement:
- Disconnect all power sources before installation to prevent electrocution
- Remove cables from auxiliary cards and securing screws before board removal
- Transfer EPROM modules from defective board to replacement unit
- Use factory nylon washers to prevent screw damage during reassembly
- Ensure plastic holders are properly tightened
Note: All specifications and features are subject to change without notice. Always refer to the manufacturer's documentation for the most current information.
