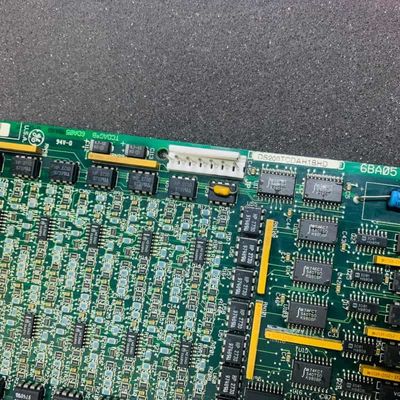

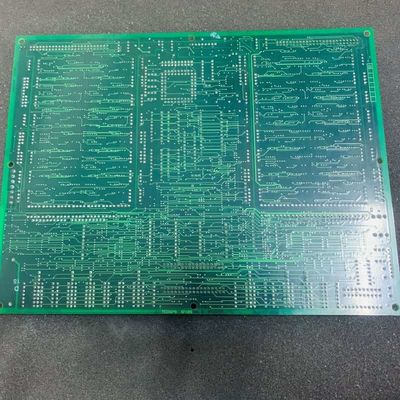

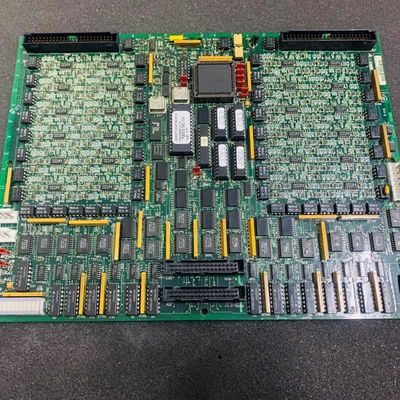

GE DS200TCDAG1B Digital I/O Board for Mark V Turbine Control with 4-20 mA Signals RTD and Thermocouple Inputs

GE DS200TCDAG1B DS200TCDAG1BDB DIGITAL INPUT/OUTPUT CARD Mark V Turbine Control

Product Details:

The GE DS200TCDAG1BDB is a Digital I/O Board designed exclusively for GE’s Mark V Turbine Control System—a legacy series used to manage wind, gas, and steam turbine automated drives, and one of the final GE Mark lines to integrate the patented Speedtronic control technology.

Functionally, it processes diverse analog signals: 4-20 mA inputs/outputs via JBB/JAA, with current dropped across burden resistors for voltage reading, RTD inputs via JCC/JDD, supplying excitation and measuring temperature-dependent resistance, thermocouple inputs via JAR/S/T, using TBQA’s cold junction compensation to calculate actual temperature, and turbine shaft voltage/current signals via JBB. All conditioned signals are sent to the I/O Engine via the 3PL connector, with software configuration thermocouple types, RTD settings managed through the HMI’s I/O Configuration Editor.

Key Features:
Comprehensive Analog Signal Handling:Acts as a central hub for 4-20 mA signals, RTDs, thermocouples, and shaft voltage/current—scaling, conditioning, and transmitting data to the I/O Engine, critical for turbine performance monitoring and control. It refines raw signals to eliminate noise, ensuring precise data that guides real-time adjustments like fuel flow or cooling system tweaks.

Removable & ESD-Sensitive PROMs:Removable PROM modules store firmware; swapping them with ESD protection like wrist straps ensures replacement boards match the original’s functionality by retaining identical instructions. This avoids reconfiguring firmware, cutting maintenance time and ensuring consistent signal processing logic post-replacement.

 Configurable Hardware & Software:Three jumpers (J1/JP2/JP3) handle hardware tweaks, while software settings customize thermocouple/RTD types and signal parameters—adapting to diverse turbine needs. J1 manages RS232 ports, JP2 aids testing, and software adjusts to match turbine-specific sensor setups seamlessly.

 Dedicated Component Interfacing:Nine connectors (eight functional, one vestigial) link to key Mark V boards (TCPS, CTBA, TBCA, TBQA) for seamless power, data, and diagnostic signal transfer, eliminating cross-talk risks. Each connector’s specific role ensures signals reach targets without interference, boosting system stability.

Test-Focused Design:Jumpers (JP2/JP3) and specialized connectors support factory testing and maintenance, simplifying troubleshooting while ensuring normative operation reliability. JP2 disables oscillators for safe testing, and connectors let techs access signals easily to diagnose issues fast.
