EC119 922-119-000-003-P2000-U2000 Cable Assembly For Vibration Measurement Systems
| Luogo di origine | Svizzera |
|---|---|
| Marca | PLC |
| Certificazione | COO ,COC ,CQ |
| Numero di modello | EC119922-119-000-003 |
| Documento | EC069-EC112-EC119-EC222-EC3...0 .pdf |
| Quantità di ordine minimo | 1 |
| Prezzo | $1700 |
| Tempi di consegna | 5-7 giorni |
| Termini di pagamento | T/T |
| Capacità di alimentazione | 999 |
Dettagli
| ID prodotto | Assemblaggio cavi EC119 922-119-000-003-P2000-U2000 per sistemi di misurazione delle vibrazioni | Tipo | Gruppo cavo |
|---|---|---|---|
| Serie | EC119 | Numero di modello | EC119922-119-000-003-P2000-U2000 |
| Garanzia | 1 anno | Funzione | Bene |
| Condizione | Nuovo |
Descrizione di prodotto
EC119 922-119-000-003-P2000-U2000 Cable Assembly For Vibration Measurement Systems
Product Overview
The EC119 is a cable assembly for CA280 vibration systems, CP21x dynamic pressure systems and EW140 ice-detection systems.
- K205A low-noise cable with PTFE outer sheath (Ø 4.2 mm)
- Flexible leaktight protection hose (Ø8.7 mm) with junction box adaptor (Ø11 mm)
- Threaded connector (CG505 type) to flying leads
- 2-wire, with inner shield and outer shield
Available Versions
- EC119 922-119-000-003-P1000-U1000
- EC119 922-119-000-003-P2000-U2000
- EC119 922-119-000-003-P5000-U5000
Technical Specifications
| Type | Cable |
|---|---|
| Weight | 2kg |
| Temperature | -55°C to +200°C |
| Voltage | 15 to 28 VDC |
| Application | Power / Electric Power, Metallurgy (Steel, Non-ferrous Metals), Robots |
| Certification | COO, COC, CQ |

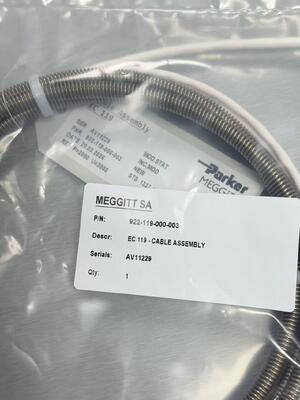

Product Images
Global Applications
Saudi Arabia, UAE, Germany, Brazil, India, and more than a hundred other countries
ABB Application Areas
- General Rotating Machinery
- Energy and Power
- Hazardous and Harsh Environments
- Aviation and Transportation
- High-end Manufacturing
Our Advantages
- Over 10 years of experience in supplying automation modules
- Products exported to more than 50 countries
- Stable supply channels to ensure a reliable source of goods
- Customer repurchase rate exceeds 80%
Frequently Asked Questions
Q: How soon can the goods be delivered after placing an order?
A: The delivery date is generally 5-7 days.
Q: How is shipping arranged? Can customers arrange their own forwarder?
A: Using standard package, shipping by Fedex, DHL, UPS, and we also support customers to arrange their own forwarder for pickup.
Q: Can extended warranty service be provided?
A: Extended warranty is ok. Please contact sales for specific costs.
Q: What is the return/exchange policy?
A: Returns and exchanges are allowed for quality issues within the warranty period. For appearance dissatisfaction, returns and exchanges are supported within 7 days.
Q: Are there products in stock? What is the lead time for bulk orders?
A: We have a large inventory.
Installation Requirements
Professional installation is essential to ensure optimal performance, operational safety, and compliance with industry standards. Proper implementation is critical for reliable system integration and long-term operational efficiency.
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
